ALUTRUSS QUADLOCK 6082-2000 4-way cross beam

• Strong EN-AW 6082 alloy for high loads

• High-quality aluminum-tubes with 50 mm in diameter

• Easy installation

• Low weight

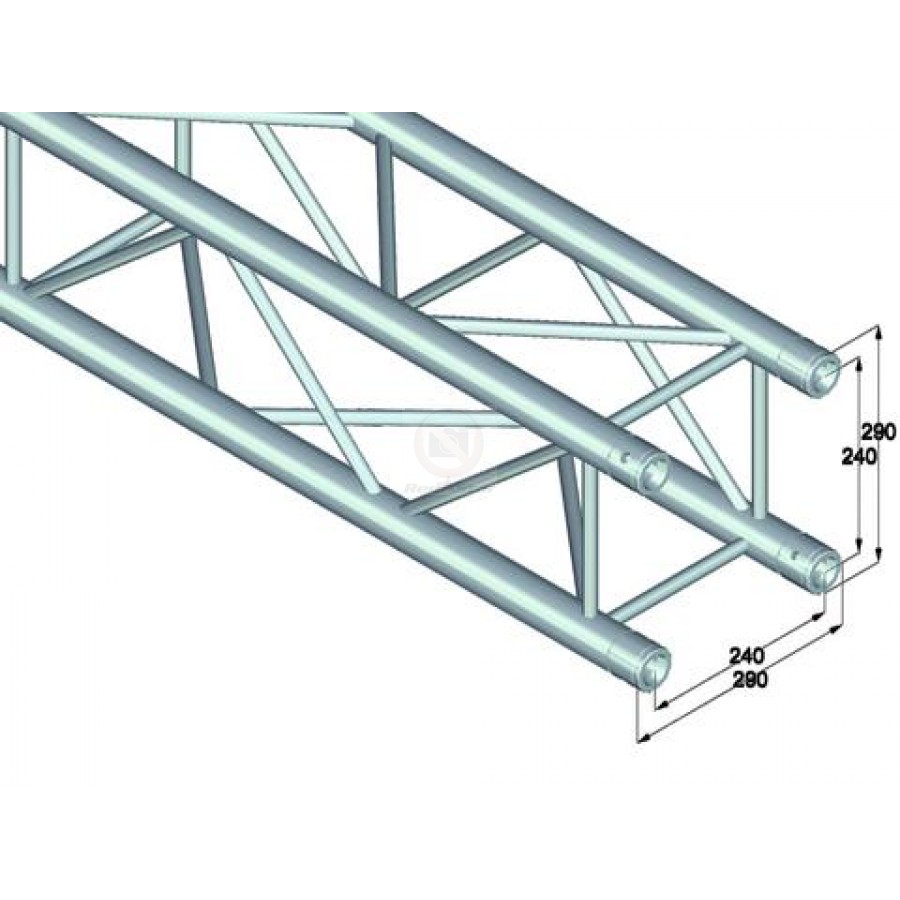

• Distance center - center: 240 mm

• For exhibition and shop installers, discotheque and theatre installations

• 1 x Connection set included

• Made in Europe

Main chords:    50 x 2 mm

Braces:    16 x 2 mm

Alloy:    EN-AW 6082 T6 (AlMgSi1 T6)

Welding material:    AlMg 5

Welding technique:    TIG-welding

Outer dimensions:

Width:    290 mm

Height:    290 mm

Length:    2000 mm

Weight:    9.5 kg

Shipping weight:    11.13 kg
